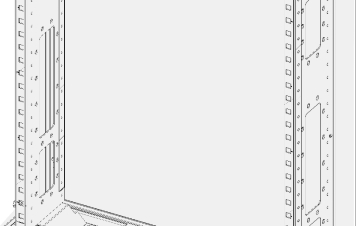

Width of the internal opening between mounting bars: 500 mm

Vertical distance between two mounting holes for mounting ears: 25 mm Horizontal distance between two mounting holes for mounting ears: 515 mm Distance between the cabinet column and the front door: 186.5 mm Distance between the cabinet column and the rear door: 153.5 mm

机柜方孔条内部开档宽度：500mm；

立柱纵向两个挂耳安装孔中心距离：25 mm； 立柱横向两个挂耳安装孔中心距离：515 mm； 机柜立柱到机柜前门的距离：196.5 mm；

机柜立柱到机柜后门的距离：153.5 mm。

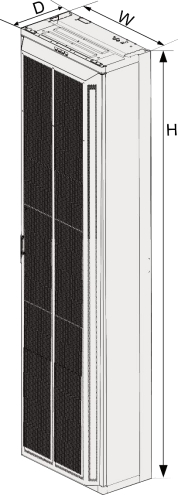

华为A63B机柜介绍，300*600*2200波分机柜，300/600/2200传输机柜

Width of the internal opening between mounting bars: 500 mm

Vertical distance between two mounting holes for mounting ears: 25 mm Horizontal distance between two mounting holes for mounting ears: 515 mm Distance between the cabinet column and the front door: 186.5 mm Distance between the cabinet column and the rear door: 153.5 mm

机柜方孔条内部开档宽度：500mm；

立柱纵向两个挂耳安装孔中心距离：25 mm； 立柱横向两个挂耳安装孔中心距离：515 mm； 机柜立柱到机柜前门的距离：196.5 mm；

机柜立柱到机柜后门的距离：153.5 mm。
