华为UPS5000-A-60KTTL技术参数

华为UPS5000-A-60KTTL,华为60kvaUPS电源技术参数华为UPS5000-A-60KTTL,华为60kvaUPS电源技术参数华为UPS5000-A-60KTTL,华为60kvaUPS电源技术参数

华为UPS,华为UPS5000-A-60KTTL,华为60KvaUPS

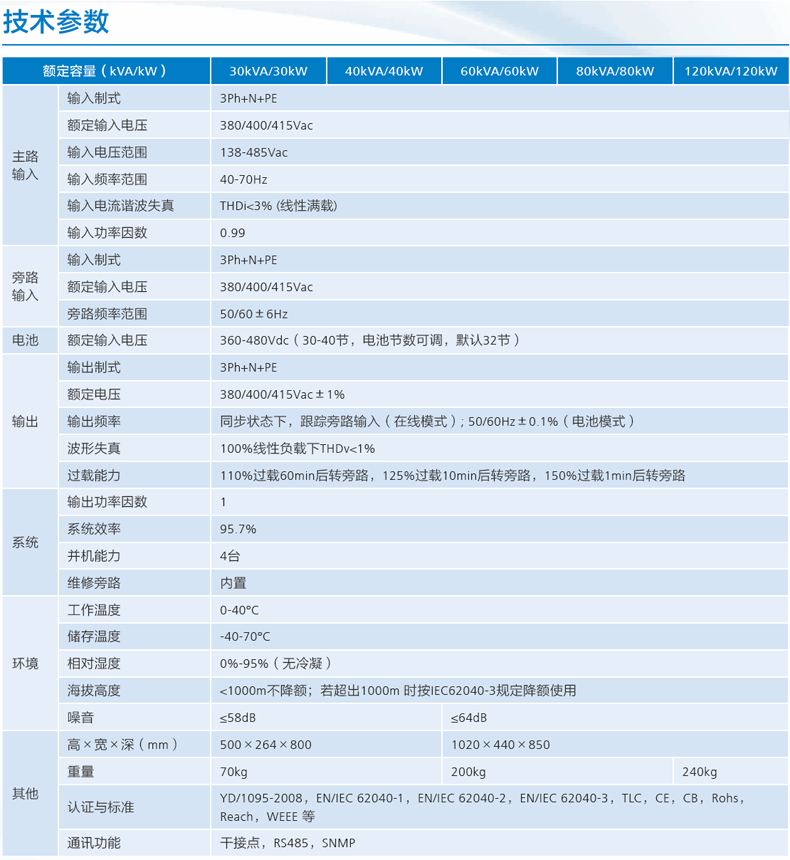

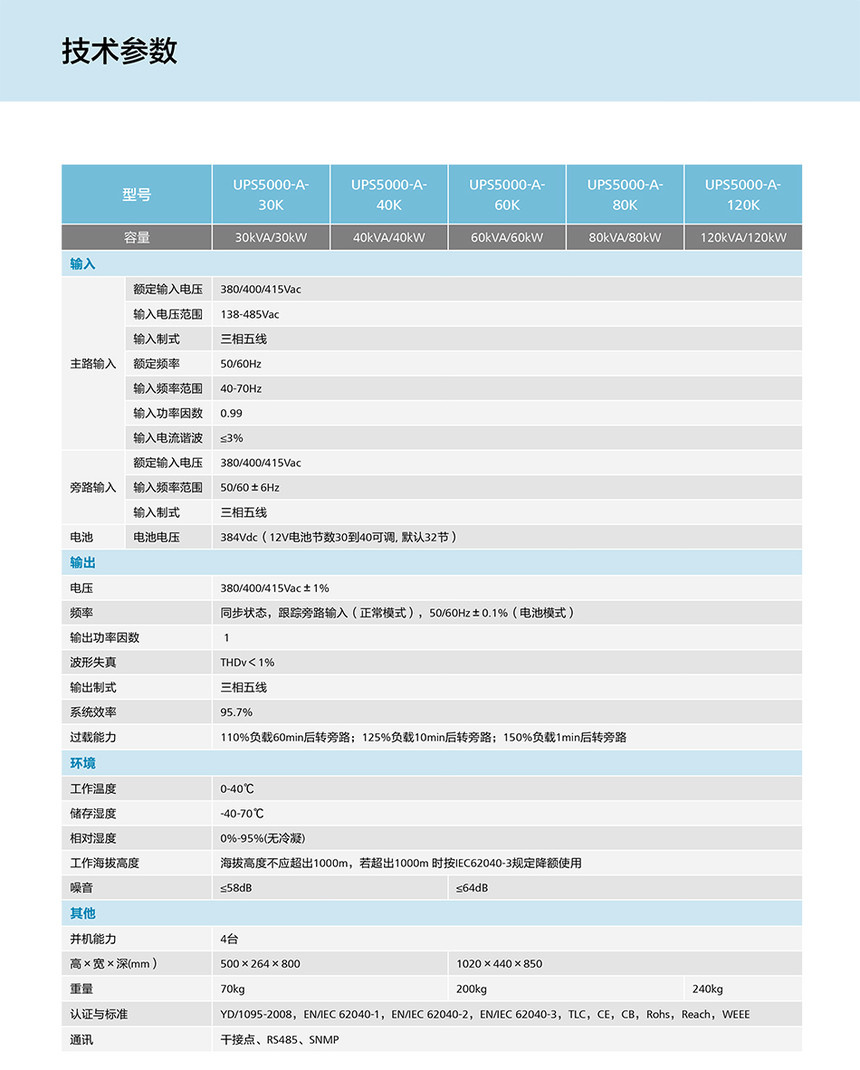

详细参数

Detailed parameters

Basic parameters

Rated capacity 60KVA

Rated power 60000W

Rated voltage AC 380/400/415V

Rated frequency 50/60Hz

Input and output parameters

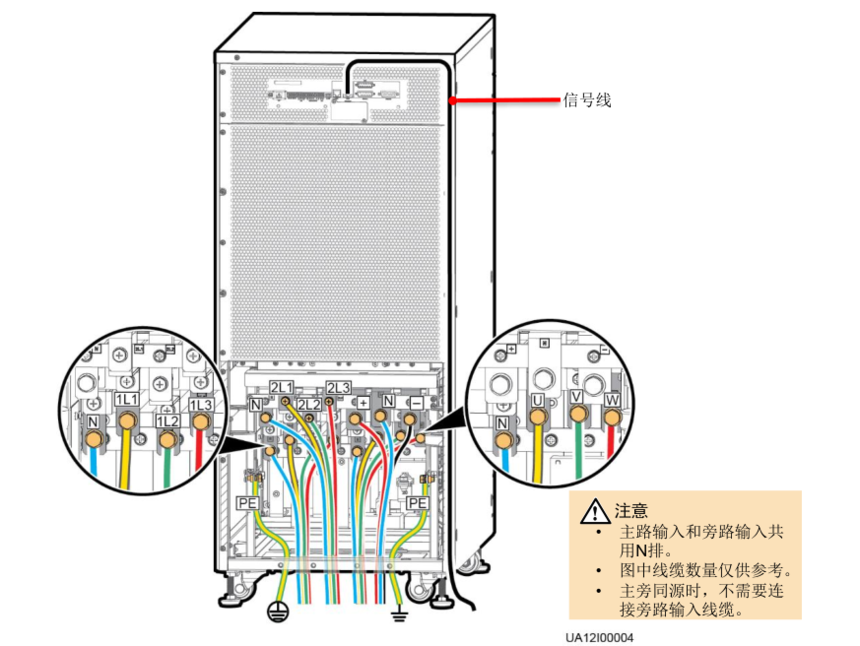

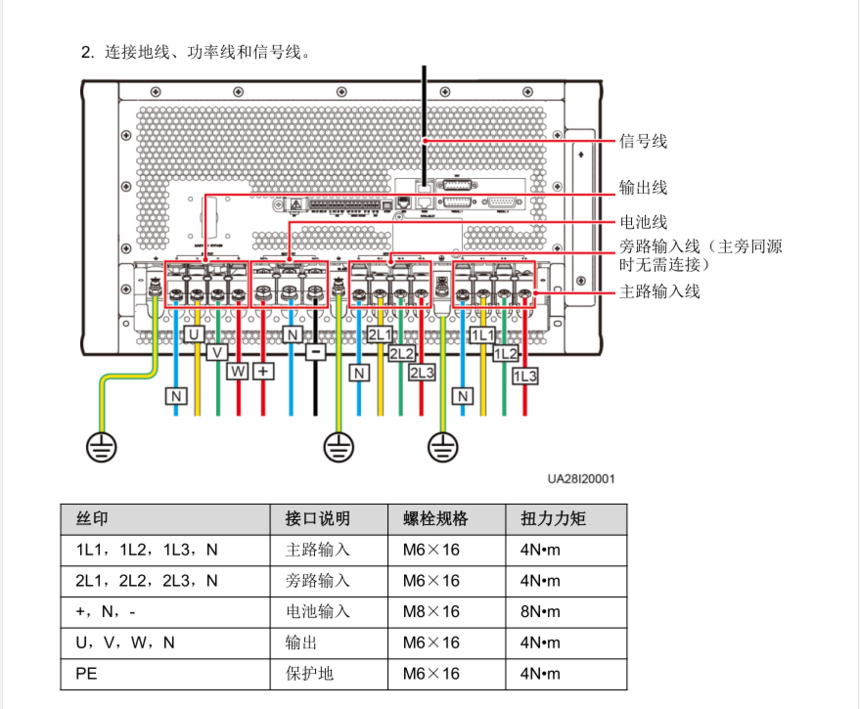

Input wiring three phase four wire + ground wire

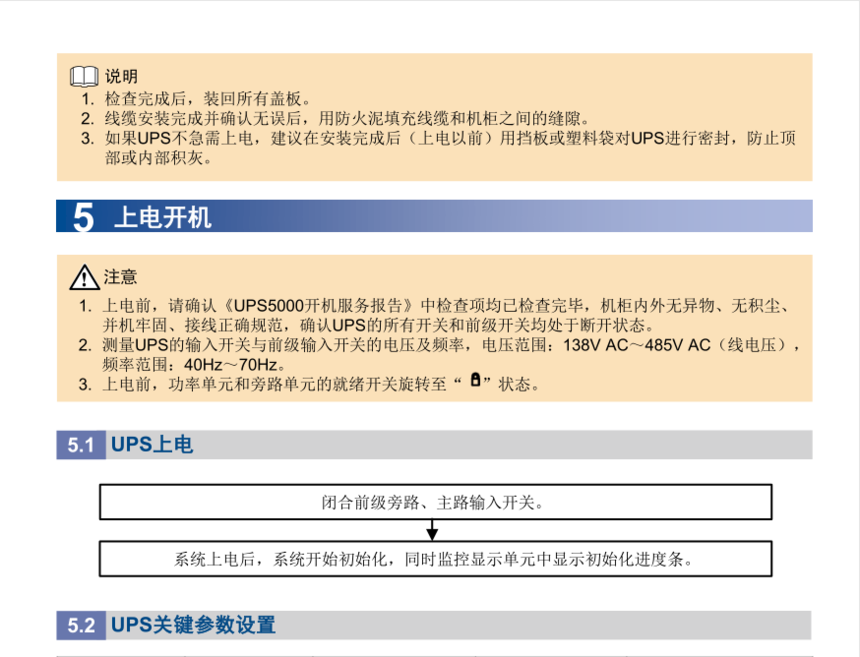

Input voltage range AC 138-485V

Input frequency range 40-70Hz

Input power factor 0.99

Output voltage range AC 380/400/415V

Output power factor 1

Other output parameters efficiency: 95.7%

Communication and management

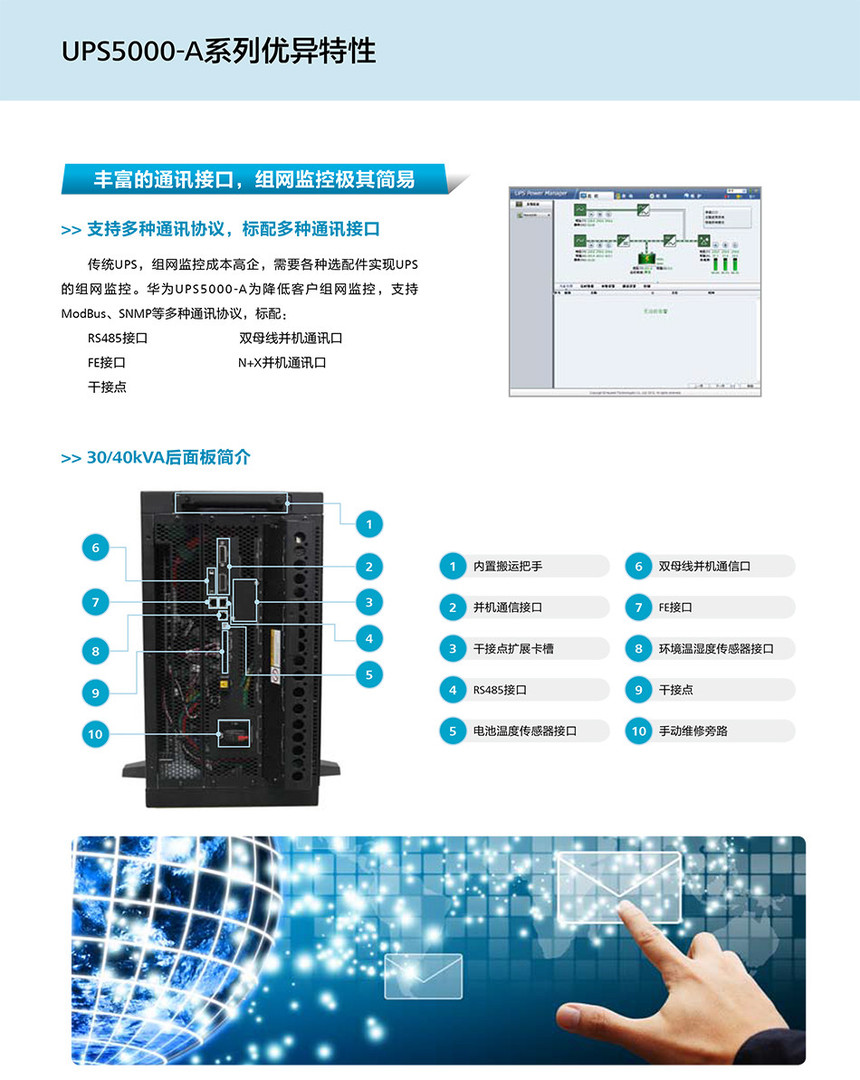

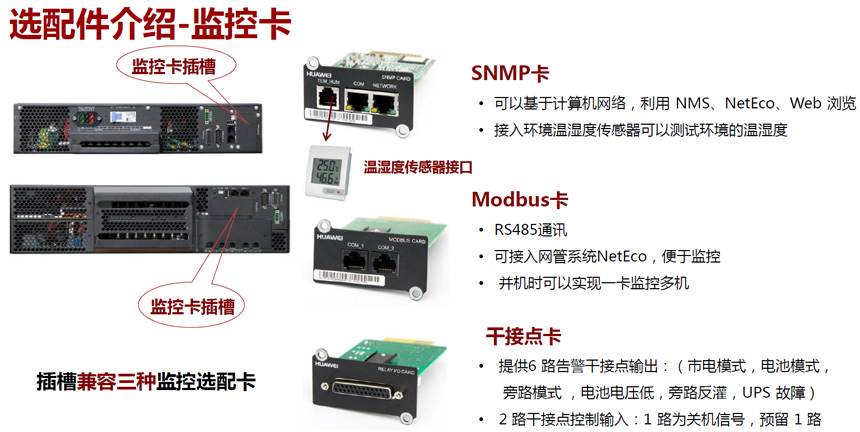

Interface port dry contact, RS485, SNMP

Overload capacity 110% load 60 minutes after bypass, 125% load 10 minutes after bypass, 150% load 1 minute after bypass)

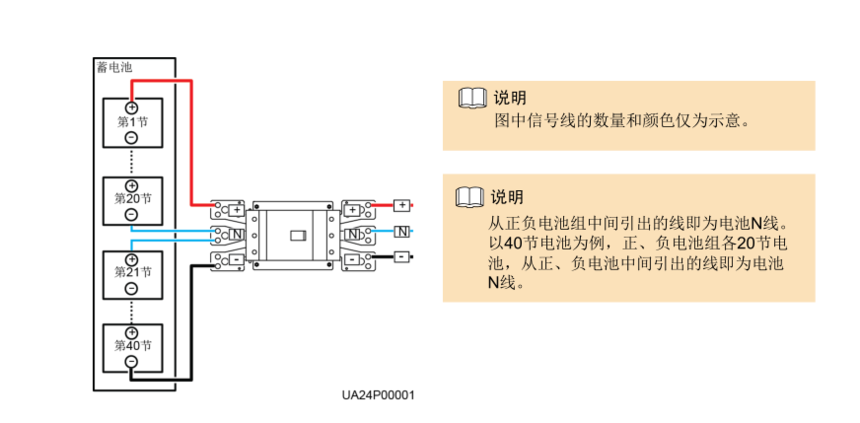

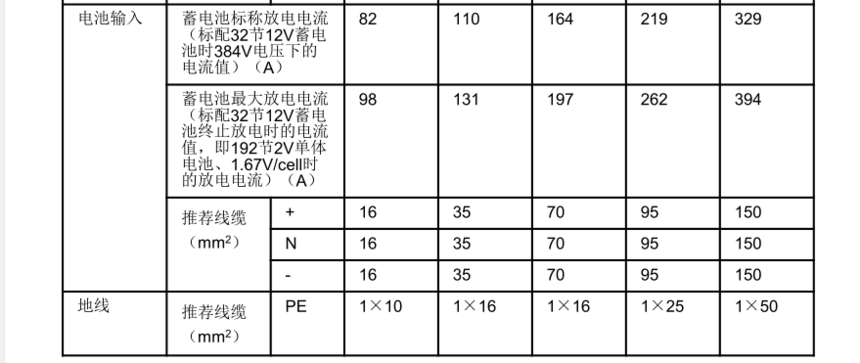

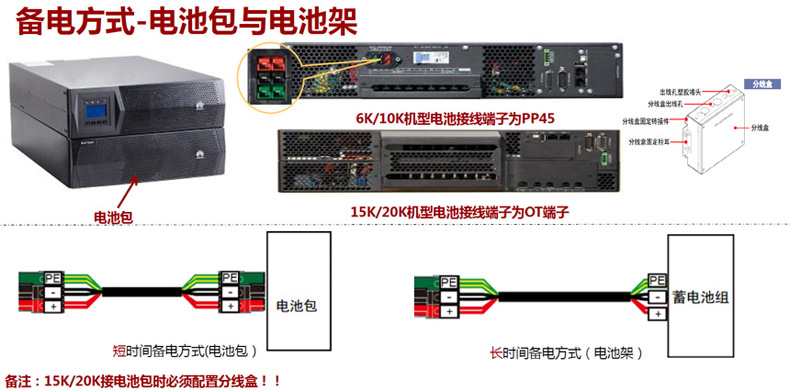

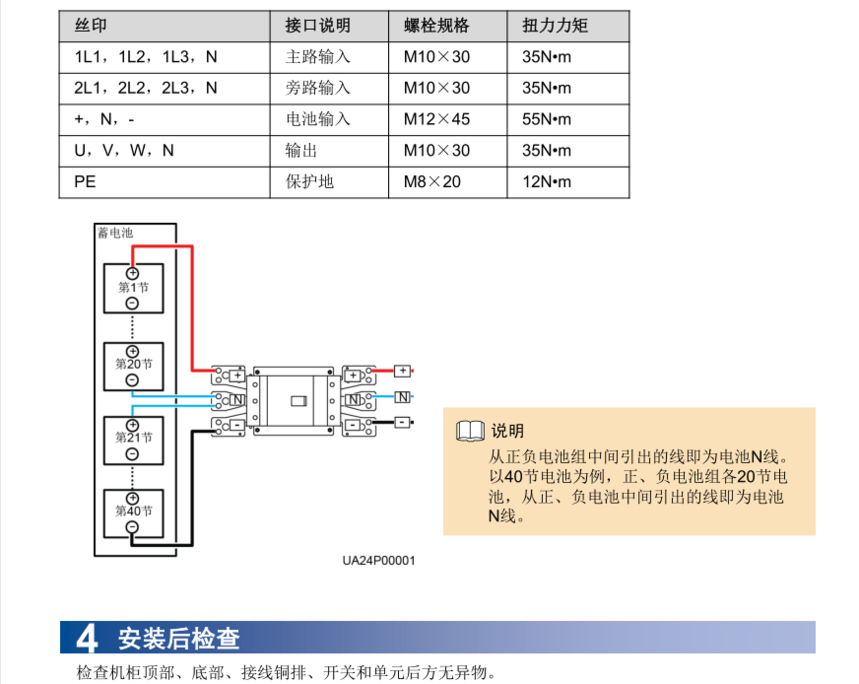

Battery and run time

Voltage current DC 384V

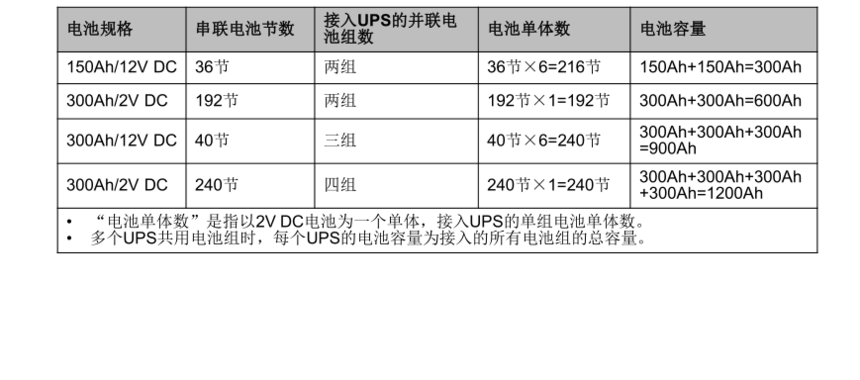

Battery capacity is adjustable in 30-40 sections.

Environmental Science

Noise value (dBA) is less than 64dB

Other parameters

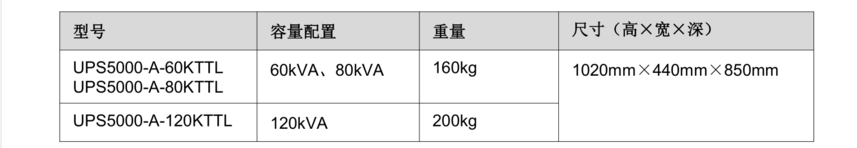

Appearance size 1020 x 440 x 850mm

Product weight 200kg
